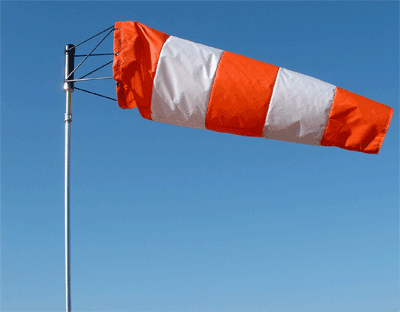

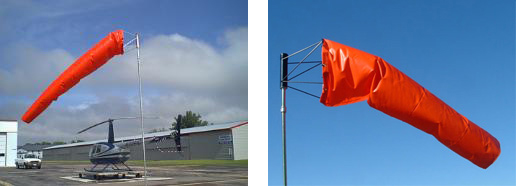

Is a popular choice for knowing the wind speed and direction for commercial airfield use. This rugged, stand alone comes complete with the pole, frame, windsock and windsock ties.
These units are manufactured by us in our facility reassuring only the best in quality and performance. We are India's biggest manufacturer of Windsocks , currently above 750 units in use by Indian Army
|
|
The windsocks can be customized to colour of socks and its colour combination, size of socks, design of socks, height of pole, material of pole and assembly options. It can also be available with & without lighting options. We also design and manufacture Windsocks as per user requirement & specifications.
Our windsocks are available in 2 nature (a) Fixed (b) Portable
All our products assure of extremely rugged design , conveniently screwable frame, aluminum/ SS/ MS hoop , military sealed bearings , and bail pivot on a stainless steel shaft for years of reliable and
responsive action. |
| |
|
| |
Standard specifications of Our windsocks
Mast / Pole
- Telescopic Mast – Minimum 6 meters high. ( available in height from 2 meters to 15 meters )
- Continuously variable height from 2.5 meters onwards. ( also possible , starting with 1 meter )
- Provision for hinged base – tethering at four corners of the grouting base.
- Withstand high wind velocity.
- Material : Galvanized steel with protective coating. ( other material like FRP, PVC, Aluminum , CI, Carbon graphite also available )
Hoop
- Gormmet Lace design - `lace on’ design.
- Swiveling hoop to match lace on design socks.
- Double support 360 degree rotation. ( single support also available )
- Single rim construction with supporting cross members.
- Material : Steel with protective coating. ( other materials like carbon graphite, Polycarbonate , SS, Aluminum, also available )
- Distance of hoop is minimum 15 inches from the mast. ( distance variable as per user
requirement )
Socks
- Dimension : 144 inches x 36 inches x 18 inches . ( Other dimensions as per user requirement also possible )
- The product is lightweight, easy to handle, and provides superior protection from water, dirt, dust, UV and IR radiation and many chemicals . They are urethane coated .
- Colour pattern :
1. Alternating day visibility orange and white
2. Alternating day visibility black and white.
(Any color combination possible as per user desire)
- Gormmet Spacing : 2-5 inches between two tethers. ( User specific gaping possible )
- Heavy duty tethers with UV stability (options available Brass, Polycarbonate, Glass Filled Nylon , SS )
- Marine grade materials used.
|
| |
|
|
|
| |
|
|
