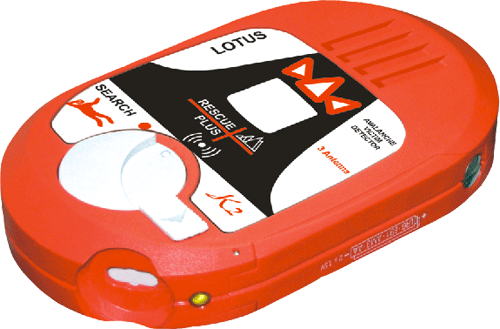

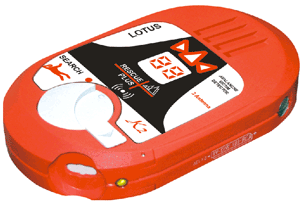

                  AVALANCHE VICTIM DETECTOR

AVALANCHE VICTIM DETECTOR
-----------------------------------------------------------------------------------------------------------------------------------------------

Conforming : EN 300718, ETS 300718, ETSI EN 300718-1, CE, UIAA

TECHNICAL SPECIFICATION
Rugged for military use. Compliant to MIL standards.
Instantaneous real time display.
Transmitter and Receiver are combined in one unit. Frequency is standard (International Beacon Frequency – 457 Khz.
Has advanced High Quality Three antenna.
Weight: 250 gms; battery weight: 15 gms
LCD Display for distance and direction indication.
LCD shows virtual avalanche field position and distance upto 5 avalanche victims by icons. It gives clear presentation of buried persons in the display and the marking of found persons making multiple burial scenarios easy to solve.
LCD information gets adjusted in real time according to transceivers motion.
Each victim has provision to be separated and flagged.
Low battery warning.
Detection Range of 55 metres (horizontal) and 7 mtrs vertical (depth).
Tendency Indicator (‘approach’ or ‘go away’ from the buried victim) for pin point victim search.
Works on alkaline/rechargeable battery (with compatible AC charger). Alkaline battery run time. 260 hrs endurance in transmission mode and 18 hours in receiving mode, while rechargeable battery endurance is 240 hrs and 16 hours respectively.
Simple Mechanism/ system for shifting between transmitting and receiving mode.
Easy to use/ operate Avalanche Victim Detector with gloves on.
No effect of nearby walky- talky / wireless communication/ mobile phones etc.
LED indication when equipment working in transmitting mode.

* Design, Specification subject to change without notice.
